The Prototype Expansion Card KIT002 enhances the flexibility of the Novaduino® Display (refer to KIT001) by enabling expansion through accessible breadboard space. It provides connections to nearly all Feather Processor pins, as well as pins for the display and front panel controls. Furthermore, the Proto Expansion Card allows integration of an Arduino Uno Processor, or most other processors, as an alternative to installing a processor directly on the Novaduino Display PCB. The card also accommodates Feather Wings or an Arduino Shield, supporting expanded modularity for your projects. Comprehensive documentation is included to facilitate the development of custom Expansion Cards compatible with the Novaduino Display and enclosure platform.

FEATURES  NRL1000013RevB Novaduino® Proto Expansion Card:

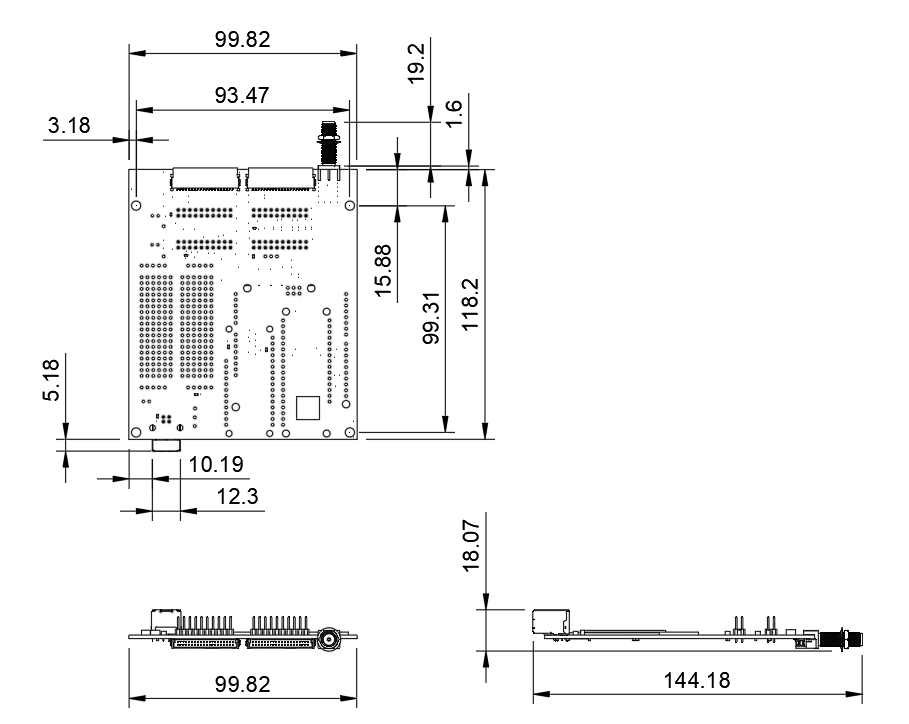

• The expansion area measures 100mm by 120mm, connects to the Novaduino® Display, and is compatible with a Hammond 1455N metal enclosure. Alternatively, it may be used without an enclosure when paired with the optional stand kit.
• Two 40-pin backplane connectors provide complete interface to the Novaduino® Display PCBA.
• Space is supplied for a 2-row x 17-pin breadboard, or the entire area can accommodate a larger breadboard.
• A Feather Processor and Feather Wing can be mounted on the Expansion Card to drive the display through the backplane.
• It is also possible to mount a full-size Arduino Uno or Mega on the Expansion Card; note that 3.3v/5v level translators are required to operate the display, key processor, and touch controller in this configuration.
• An SMA connector may optionally be included for front panel passthrough.
• Optionally, a USB-B connector can be added for rear panel passthrough.

Kit Includes:

• Novaduino® Proto Expansion Card (pre-assembled with backplane connectors)
• DC Filter Capacitors
• Headers for Display Board pin  Access

Options:

• 2 x 17 pin Breadboard
• USB-B Connector
• Stand Kit (4 Standoffs and Hardware)
• Internal USB Programming Cable Kit
• Connects the expansion card usb-B connector to the Feather usb-b micro connector so you can re-program the Feather without disassembling the case.
• SMA and MMCM Connectors
